High Res Internal 420TVL CCTV Camera With Audio 420 TVL Horizontal Resolution20m Infrared Range3.6mm Fixed Lens
Bookmark and Share

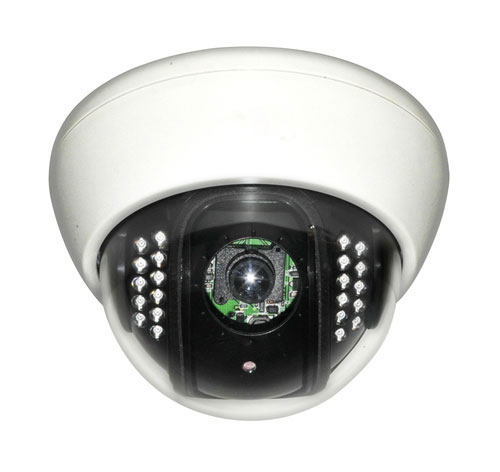

High Res Internal 420TVL CCTV Camera With Audio

1/3" Sony CCD 420 TVL 3.6mm lens

Product ID: I-18


Availability

Ask a question about this product
Price:

£38.40

(£46.08 inc. VAT)

Features

Image Sensor

1/3" Sony Colour CCD

Picture Quality

420TVL
0 Lux (IR On)

Lens

3.6mm Fixed Lens
68° Viewing Angle

Night Vision

Up to 20 metre night vision

Additional Information

Built in Microphone

mage Sensor

1/3

Detailed Specification

Model No

QC-D201S/3.6

Image Sensor

1/3"SONY CCD

Horizontal Resolution

420TV Lines

Scanning Area

4.9mm(H)×3.7mm(V)

Pixel

PAL:752(H)×582(V)

Signal System

PAL

Usable Illumination

IR ON 0Lux

S/N Ratio

More than 48dB

Electronic Shutter

PAL:1/50s-1/100,000s

Gamma Characteristic

0.45

Auto Gain Control

Auto

Auto White Balance

Auto

Back Light Compensation

Auto

Synchronous System

Internal Synchronization

Lens Mount

3.6mm lens

Video Output

1.0Vp-p,75?,BNC Connector

IR View Distance

20M

Power Consumption

150mA(IR ON MAX 350mA)

Operating Temperature

-10?~+50?

Material

ABS Plastic Cover

Weight(g)

312g

Power Supply

DC 12V

Dimensions(W×D×H)

?140mm×91mm
Click on images to enlarge

High Res Internal 420TVL CCTV Camera With Audio



  Please select your lens size:
