High Res External 480TVL White Ultra Mini Dome 2.8mm Lens CCTV C 480 TVL Horizontal Resolution10m Infrared Range
Bookmark and Share

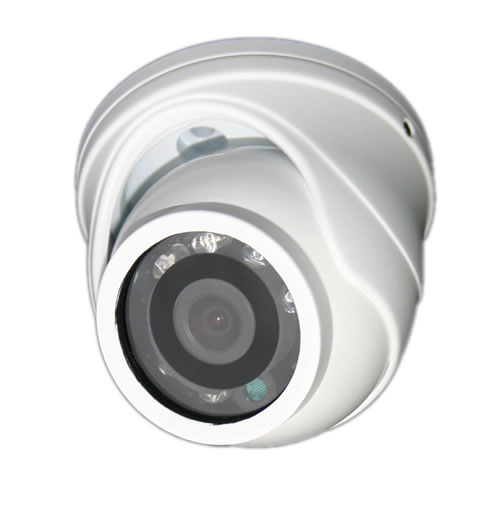

High Res External 480TVL White Ultra Mini Dome 2.8mm Lens CCTV C

1/3" Sony CCD 480 TVL 0.1 Lux 2.8mm Wide Angle

Product ID: E-04


Availability

Ask a question about this product
Price:

£38.00

(£45.60 inc. VAT)

Features

·

Camera CCD

1/3” Sony Color CCD

·

Resolution

High Resolution 480TVL

·

Infrared LED

6EA

·

IR Distance

5-10meters

·

Mini. Illumination

0 Lux (IR LED on)

·

Lens

2.8mm

·

Casing

Vandalproof

Detailed Specification

Model   NO.

QH-VD227SNH

VIDEO



Image Device

1/3" Sony Color CCD

TV System

PAL/NTSC

Total Pixels

PAL:537(H)*597(V);
NTSC:537(H)*505(V)

Effective Pixels

PAL:500(H)x582(v);

NTSC:510(H)x492(v)

Scanning System

2:1 Interlace

Synchronization

Internal

Horizontal Resolution

480TVL

Min. Illumination

0 Lux (LED ON)

S/N Ratio

>48dB

Video Output

1Vp-p,75ohm, BNC

LENS



Focal Length

2.8mm

OPERATIONAL



Day & Night

Auto

Backlight Compensation

Auto

Gain Control

Auto

White Balance

Auto

Gamma Correction

>0.45

Electronic Shutter Speed

PAL:1/50 ~ 1/100,000sec;

NTSC:1/60 ~ 1/100,000sec

Infrared LED

6x?5EA

IR Distance

5-10 Meters

Infrared Spectrum

850nm

ENVIRONMENTA L



Operation Temperature

-20?~ +50?

Storage Temperature

-20~ +60?

Casing Protection

Vandalproof

ELECTRICAL



Input Voltage/Current

DC12V 100mA/120mA(LED on)

Adapter Requirement

DC12V1A

MECHANICAL





Dimensions

D60*H58mm

Net Weight



0.14Kg



Click on images to enlarge

High Res External 480TVL White Ultra Mini Dome 2.8mm Lens CCTV C



  Please select your lens size:
