| System | Compression Format | H.264 | | OS | Embedded Linux | | Video | Input | 8CH, BNC (1.0Vp-p, 75?) | | VGA Output | 1*VGA: 1280x1024, 800x600, 1024x768 | | BNC | 1*BNC Mainout | | Audio | Audio Input | 8CH | | Audio Output | 1CH | | Recording | Real Time Recording | D1 @ 25FPS for 2 Channels

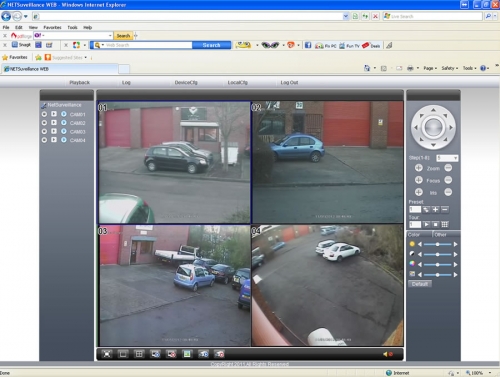

CIF @ 25FPS | | Recording Mode | Schedule, Manual, Motion, Sensor | | Playback | Playback Channel | 8CH | | Search Mode | Time, Event | | Backup | USB Disk | 1 USB2.0 port | | Backup Format | DAT or AVI | | Dual Steam | Master Stream | 1~25/30fps@4CIF/CIF | | Netwrok Stream | 1~6/7fps@CIF | | Remote Application | Browser | IE6.7.8 | | CMS | YES | | Mobile Phone OS | iPhone/Blackberry/Android/Symbian/Windows mobile | | User Access | 10 users online with professional authority management | | Alarm | Alarm Input | 4CH | | Alarm Output | 1CH | | Storage | HDD(Each max. size 2 TB) | 1SATA | | PTZ | PTZ | 1*RS485 | | PTZ Protocol | PELCOP,PELCOD,PHILIPS,NONE.HY.PANASONIC.SAMSUNG.
SANLI. SANTACHI.SHARP.SONY.YAAY | | PTZ Control | pan, tilt, zoom, preset, cruise, trace | | Network | Ethernet | 10 / 100 Mbps Ethernet (RJ-45) | | Protocol | TCP/IP, DHCP, DDNS, NTP, SMTP | | Others | Remote Control | 1 | | Power Supply | DC12V / 3A | | Operating Temperature | 0°C ~50°C | | Humidity | 10% ~ 90% Humidity | | Packing | Product Weight | NW: | | Product Size | 320mmx220mmx50mm |
|
